For research use only. Not for therapeutic Use.
BCECF-AM is a cell membrane permeable compound widely used as a fluorescent indicator for intracellular pH.
Fully treated cells show hydrogenosomes with an electron-dense deposit which aggregates to a variable extent.The staining is seen in the interior of hydrogenosomes in some instances. It is also observed by microscopy that the K+/H+ ionophor nigericin does not inhibit hydrogenosomal loading with BCECF-AM[1].The pH-sensitive fluorescent dyes to measure cytosolic pH.
1.Prepare a 2 to 20 mM stock solution of BCECF-AM in DMSO.
2.Prepare a 5-50 μM BCECF-AM dye-loading solution in buffer solutions (HHBS or PBS).3. Add 1000 μL/well (6-well plate),100 μL/well (96-well plate) or 25 μL/well (384-well plate) BCECF-AM dye-loading solution into the cell plate.4. Incubate the dye-loading plate in a cell incubator for 30-60 minutes.5. Wash and replace the dye-loading solution with buffers.6. Run the pH assay by monitoring the fluorescence at Ex/Em = 490/535 nm or 430/535 nm for ratio measurements.
| Catalog Number | I013222 |
| CAS Number | 117464-70-7 |

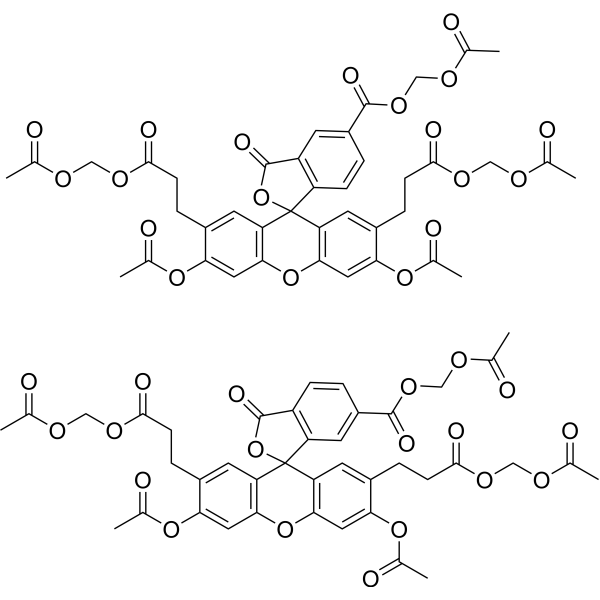

| Synonyms | acetyloxymethyl 3′,6′-diacetyloxy-2′,7′-bis[3-(acetyloxymethoxy)-3-oxopropyl]-1-oxospiro[2-benzofuran-3,9′-xanthene]-5-carboxylate;acetyloxymethyl 3′,6′-diacetyloxy-2′,7′-bis[3-(acetyloxymethoxy)-3-oxopropyl]-3-oxospiro[2-benzofuran-1,9′-xanthene]-5-carboxylate |
| Molecular Formula | C40H36O19 |
| Purity | ≥95% |
| InChI | InChI=1S/2C40H36O19/c1-20(41)50-17-53-36(46)10-7-25-13-30-34(15-32(25)56-23(4)44)58-35-16-33(57-24(5)45)26(8-11-37(47)54-18-51-21(2)42)14-31(35)40(30)29-9-6-27(12-28(29)39(49)59-40)38(48)55-19-52-22(3)43;1-20(41)50-17-53-36(46)10-7-25-12-30-34(15-32(25)56-23(4)44)58-35-16-33(57-24(5)45)26(8-11-37(47)54-18-51-21(2)42)13-31(35)40(30)29-14-27(6-9-28(29)39(49)59-40)38(48)55-19-52-22(3)43/h2*6,9,12-16H,7-8,10-11,17-19H2,1-5H3 |
| InChIKey | UNDDCRWLSMJTCT-UHFFFAOYSA-N |
| SMILES | CC(=O)OCOC(=O)CCC1=CC2=C(C=C1OC(=O)C)OC3=C(C24C5=C(C=C(C=C5)C(=O)OCOC(=O)C)C(=O)O4)C=C(C(=C3)OC(=O)C)CCC(=O)OCOC(=O)C.CC(=O)OCOC(=O)CCC1=CC2=C(C=C1OC(=O)C)OC3=C(C24C5=C(C=CC(=C5)C(=O)OCOC(=O)C)C(=O)O4)C=C(C(=C3)OC(=O)C)CCC(=O)OCOC(=O)C |
| Reference | [1]. Scott DA, et al. Analysis of the uptake of the fluorescent marker 2′,7′-bis-(2-carboxyethyl)-5(and-6)-carboxyfluorescein (BCECF) by hydrogenosomes in Trichomonas vaginalis. Eur J Cell Biol. 1998 Jun;76(2):139-45. [2]. Clark Undem, et al. Endothelin-1 Augments Na+/H+ Exchange Activity in Murine Pulmonary Arterial Smooth Muscle Cells via Rho Kinase. PLoS One. 2012; 7(9): e46303. |
