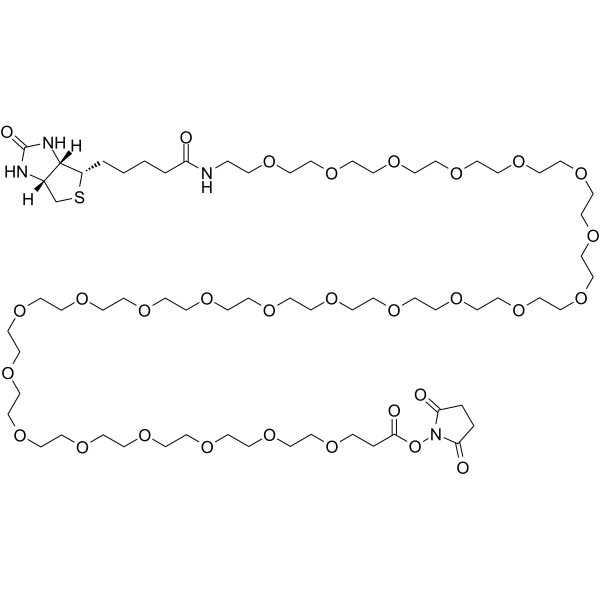

Biotin-PEG24-NHS ester

• CAT Number: I045957
• Molecular Formula: C65H120N4O30S
• Molecular Weight: 1469.72
• Purity: ≥95%
• Synonyms: (2,5-dioxopyrrolidin-1-yl) 3-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[2-[5-[(3aS,4S,6aR)-2-oxo-1,3,3a,4,6,6a-hexahydrothieno[3,4-d]imidazol-4-yl]pentanoylamino]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]ethoxy]propanoate
• InChI: InChI=1S/C65H120N4O30S/c70-60(4-2-1-3-59-64-58(57-100-59)67-65(74)68-64)66-8-10-76-12-14-78-16-18-80-20-22-82-24-26-84-28-30-86-32-34-88-36-38-90-40-42-92-44-46-94-48-50-96-52-54-98-56-55-97-53-51-95-49-47-93-45-43-91-41-39-89-37-35-87-33-31-85-29-27-83-25-23-81-21-19-79-17-15-77-13-11-75-9-7-63(73)99-69-61(71)5-6-62(69)72/h58-59,64H,1-57H2,(H,66,70)(H2,67,68,74)/t58-,59-,64-/m0/s1
• InChIKey: FWKPYGZMJFADHK-WYJVHFOMSA-N
• SMILES: C1CC(=O)N(C1=O)OC(=O)CCOCCOCCOCCOCCOCCOCCOCCOCCOCCOCCOCCOCCOCCOCCOCCOCCOCCOCCOCCOCCOCCOCCOCCOCCNC(=O)CCCCC2C3C(CS2)NC(=O)N3

Biotin-PEG24-NHS ester is a PEG-based PROTAC linker that can be used in the synthesis of PROTACs[1].
PROTACs contain two different ligands connected by a linker; one is a ligand for an E3 ubiquitin ligase and the other is for the target protein. PROTACs exploit the intracellular ubiquitin-proteasome system to selectively degrade target proteins[1].

Reference

[1]. An S, et al. Small-molecule PROTACs: An emerging and promising approach for the development of targeted therapy drugs. EBioMedicine. 2018 Oct;36:553-562
