For research use only. Not for therapeutic Use.
C6 NBD Ceramide is a Golgi apparatus fluorescent probe with cell membrane permeability. C6 NBD Ceramide can be used for fast and convenient green fluorescent labeling of Golgi in living and fixed cells, and can be used to observe changes in Golgi morphology in living cells (Ex=466 nm, Em=536 nm). C6-NBD-ceramide is metabolized to fluorescent sphingomyelin and glucosylceramide, can be used for the study of sphingolipid transport and metabolic mechanism[1][2][3].
Guidelines (Following is our recommended protocol. This protocol only provides a guideline, and should be modified according to your specific needs).
Labeling of Golgi apparatus[3]:
1. Rinse cells (on glass cover slips) by HMEM, then fix cells in glutaraldehyde or paraformaldehyde for 5-10 min (25℃).
2. Wash fixed cells in a balanced salt solution (such as HCMF).
3. Transfer culture dishes containing the glass cover slips to an ice-water bath and incubate with freshly prepared NaBH4 for 3×5 min (for glutaraldehyde-fixed cells).
4. Rinse cells several times (20-30 min) in cold HCMF, warm to 25℃, then incubate with C6 NBD-ceramide/BSA for 60 min.
5. Wash fixed cells by HCMF, and incubate with 10% fetal calf serum or 2 mg/mL BSA (30-90 min; 25℃) to back-exchange excess C6 NBD-ceramide from the preparation and enhance the staining of the Golgi apparatus.
6. The glass cover slips mounted on depression slides and observe by fluorescence microscope (Ex=466 nm, Em=536 nm).
| Catalog Number | R001640 |
| CAS Number | 94885-02-6 |

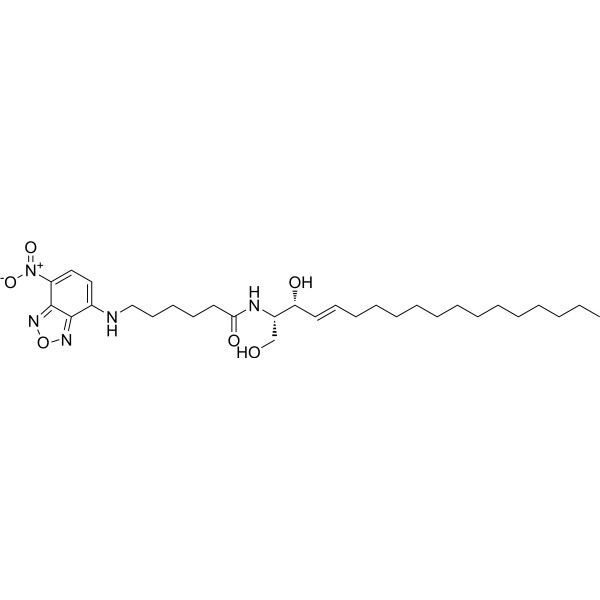

| Synonyms | N-[(E,2S,3R)-1,3-dihydroxyoctadec-4-en-2-yl]-6-[(4-nitro-2,1,3-benzoxadiazol-7-yl)amino]hexanamide |
| Molecular Formula | C30H49N5O6 |
| Purity | ≥95% |
| InChI | InChI=1S/C30H49N5O6/c1-2-3-4-5-6-7-8-9-10-11-12-13-15-18-27(37)25(23-36)32-28(38)19-16-14-17-22-31-24-20-21-26(35(39)40)30-29(24)33-41-34-30/h15,18,20-21,25,27,31,36-37H,2-14,16-17,19,22-23H2,1H3,(H,32,38)/b18-15+/t25-,27+/m0/s1 |
| InChIKey | HZIRBXILQRLFIK-VPZZKNKNSA-N |
| SMILES | CCCCCCCCCCCCCC=CC(C(CO)NC(=O)CCCCCNC1=CC=C(C2=NON=C12)[N+](=O)[O-])O |
| Reference | [1]. Lipsky NG, et al. A vital stain for the Golgi apparatus. Science. 1985 May 10;228(4700):745-7. [2]. Brandán YR, et al. Influence of sphingomyelin metabolism during epithelial-mesenchymal transition associated with aging in the renal papilla. J Cell Physiol. 2022 Jul 31. [3]. Pagano RE. A fluorescent derivative of ceramide: physical properties and use in studying the Golgi apparatus of animal cells. Methods Cell Biol. 1989;29:75-85. |
