D149 Dye is an indoline-based dye, which is a high-extinction-coefficient metal-free organic sensitizer.
D149 is a metal-free organic dye, which is promising all-organic alternatives. D149 displays power conversion efficiency of up to 9%. Furthermore, D149 has a peak extinction co-efficient of 68700 M-1 cm-1 at 540 nm, significantly higher than 13900 M-1cm-1 at 535 nm for N719[1]. D149, a metal-free indoline dye, is one of the most promising sensitizers for dye-sensitized solar cells (DSSCs) and has shown very high solar energy conversion efficiencies of 9%. D149 shows a large number of unresolved aromatic and olefinic signals between 7 and 7.5 ppm[2]
| Catalog Number | I013960 |
| CAS Number | 786643-20-7 |

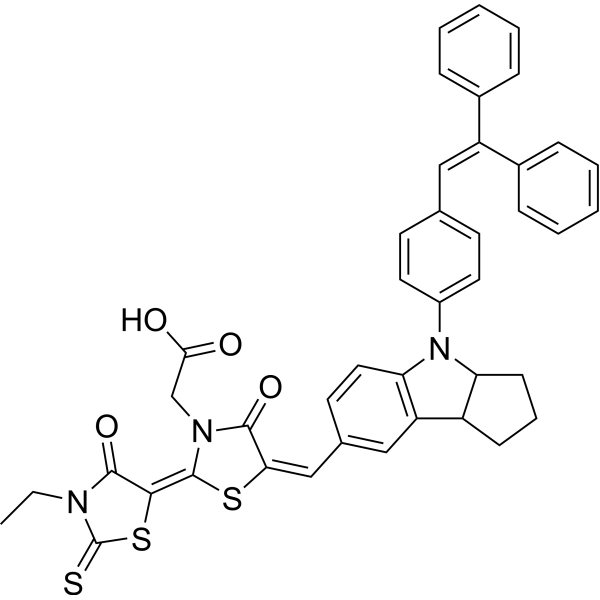

| Synonyms | 2-[(2Z,5E)-5-[[4-[4-(2,2-diphenylethenyl)phenyl]-2,3,3a,8b-tetrahydro-1H-cyclopenta[b]indol-7-yl]methylidene]-2-(3-ethyl-4-oxo-2-sulfanylidene-1,3-thiazolidin-5-ylidene)-4-oxo-1,3-thiazolidin-3-yl]acetic acid |
| Molecular Formula | C42H35N3O4S3 |
| Purity | ≥95% |
| InChI | InChI=1S/C42H35N3O4S3/c1-2-43-40(49)38(52-42(43)50)41-44(25-37(46)47)39(48)36(51-41)24-27-18-21-35-33(23-27)31-14-9-15-34(31)45(35)30-19-16-26(17-20-30)22-32(28-10-5-3-6-11-28)29-12-7-4-8-13-29/h3-8,10-13,16-24,31,34H,2,9,14-15,25H2,1H3,(H,46,47)/b36-24+,41-38- |
| InChIKey | OZFUEQNYOBIXTB-YIVSFYALSA-N |
| SMILES | CCN1C(=O)C(=C2N(C(=O)C(=CC3=CC4=C(C=C3)N(C5C4CCC5)C6=CC=C(C=C6)C=C(C7=CC=CC=C7)C8=CC=CC=C8)S2)CC(=O)O)SC1=S |
| Reference | [1]. Lin J, et al. 3D hierarchical rutile TiO2 and metal-free organic sensitizer producing dye-sensitized solar cells 8.6% conversion efficiency. Sci Rep. 2014 Aug 29;4:5769. [2]. El-Zohry A, et al. Isomerization and Aggregation of the Solar Cell Dye D149. J Phys Chem C Nanomater Interfaces. 2012 Dec 20;116(50):26144-26153. |
