For research use only. Not for therapeutic Use.
Fl-DIBO (fluorogenic dibenzocyclooctyne) is a selective and high sensitivity fluorescent probe to azide compounds. Fl-DIBO can react rapidly with azide compounds to form new highly fluorescent products with a maximum emission wavelength of 469 nm and excitation wavelength of 363 nm. Fl-DIBO can be used to label diazo-tagged proteins without detectable background signal interference[1][2]. Fl-DIBO is a click chemistry reagent, it contains an Alkyne group and can undergo copper-catalyzed azide-alkyne cycloaddition (CuAAc) with molecules containing Azide groups.
Guidelines (Following is our recommended protocol. This protocol only provides a guideline, and should be modified according to your specific needs).
Labeling diazo-labeled proteins[2][3]:
1. Resuspend the protein with 1×PBS (pH 7.4) and incubate with NHS-activated ester (25 mM in DMSO) overnight at room temperature.
2. Labeled proteins are co-incubated with Fl-DIBO (25-500 μM) at 37 °C for 18 h.
3. Protein SDS-PAGE gel analysis and in-gel fluorescence imaging analysis with λex=365 nm, λem=480 nm.
| Catalog Number | I043282 |
| CAS Number | 1407523-31-2 |
| Synonyms | 8,15-dimethoxytetracyclo[11.4.0.02,4.05,10]heptadeca-1(13),2(4),5(10),6,8,14,16-heptaen-11-yn-3-one |
| Molecular Formula | C19H12O3 |
| Purity | ≥95% |
| InChI | InChI=1S/C19H12O3/c1-21-13-5-7-15-11(9-13)3-4-12-10-14(22-2)6-8-16(12)18-17(15)19(18)20/h5-10H,1-2H3 |
| InChIKey | BZYUEUWYGRHCPO-UHFFFAOYSA-N |

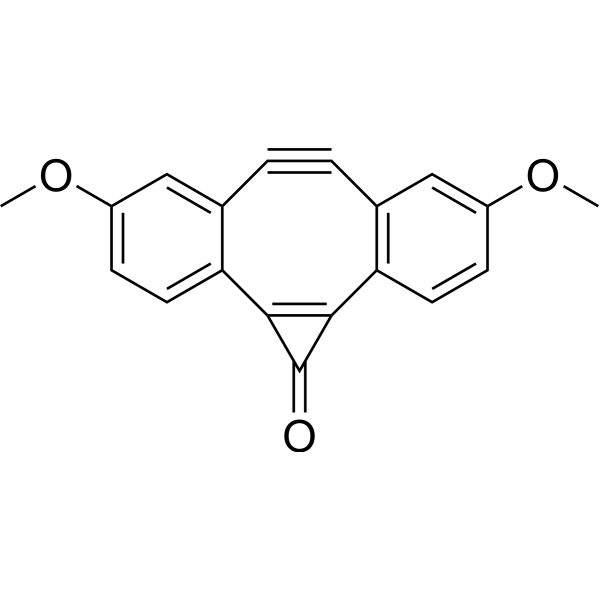

| SMILES | COC1=CC2=C(C=C1)C3=C(C3=O)C4=C(C=C(C=C4)OC)C#C2 |
| Reference | [1]. Ke Wang, et al. A metal-free turn-on fluorescent probe for the fast and sensitive detection of inorganic azides. Bioorg Med Chem Lett. 2016 Apr 1;26(7):1651-4. [2]. Frédéric Friscourt, et al. Fluorogenic Strain-Promoted Alkyne-Diazo Cycloadditions. Chemistry. 2015 Sep 28;21(40):13996-4001. doi: 10.1002/chem.201502242. Epub 2015 Aug 18. [3]. Camille Favre, et al. Sydnone Reporters for Highly Fluorogenic Copper-Free Click Ligations. J Org Chem. 2018 Feb 16;83(4):2058-2066. |
