For research use only. Not for therapeutic Use.
Janelia Fluor® 549, Azide (JF549, Azide) is a fluorescent dye with the absorption maximum (λab (max)) of 549 nm and emission maximum (λem (max)) of 571 nm[1]. Janelia Fluor® products are licensed under U.S. Pat. Nos. 9,933,417, 10,018,624 and 10,161,932 and other patents from Howard Hughes Medical Institute.
| Catalog Number | I045831 |

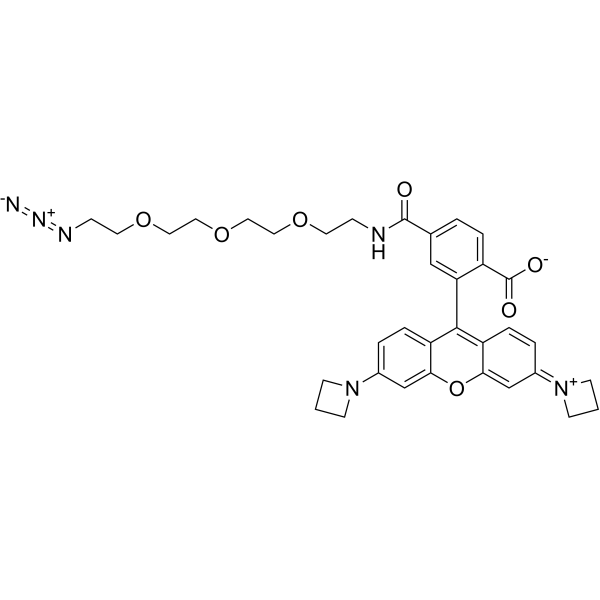

| Synonyms | 2-[3-(azetidin-1-ium-1-ylidene)-6-(azetidin-1-yl)xanthen-9-yl]-4-[2-[2-[2-(2-azidoethoxy)ethoxy]ethoxy]ethylcarbamoyl]benzoate |
| Molecular Formula | C35H38N6O7 |
| Purity | ≥95% |
| InChI | InChI=1S/C35H38N6O7/c36-39-38-10-16-46-18-20-47-19-17-45-15-9-37-34(42)24-3-6-27(35(43)44)30(21-24)33-28-7-4-25(40-11-1-12-40)22-31(28)48-32-23-26(5-8-29(32)33)41-13-2-14-41/h3-8,21-23H,1-2,9-20H2,(H-,37,42,43,44) |
| InChIKey | XDSXVSGQYCACTI-UHFFFAOYSA-N |
| SMILES | C1CN(C1)C2=CC3=C(C=C2)C(=C4C=CC(=[N+]5CCC5)C=C4O3)C6=C(C=CC(=C6)C(=O)NCCOCCOCCOCCN=[N+]=[N-])C(=O)[O-] |
| Reference | [1]. Jonathan B Grimm, et al. Synthesis of Janelia Fluor HaloTag and SNAP-Tag Ligands and Their Use in Cellular Imaging Experiments. Methods Mol Biol. 2017;1663:179-188. |
