For research use only. Not for therapeutic Use.
Janelia Fluor® 646, Maleimide (JF646, Maleimide) is a red fluorescent dye that contains a maleimide group. JF646, Maleimide can be used in cellular imaging[1][2]. Janelia Fluor® products are licensed under U.S. Pat. Nos. 9,933,417, 10,018,624 and 10,161,932 and other patents from Howard Hughes Medical Institute.
λmax (nm)=646; λem (nm)=664[1].
JF646 can serve as a ligand for self-labeling tag (such as HaloTag)[1].
JF646, Maleimide is modified by JF646. JF646, a red fluorescent dye, is photostable, membrane-permeable, has a high extinction coefficient[2].
| Catalog Number | I045769 |

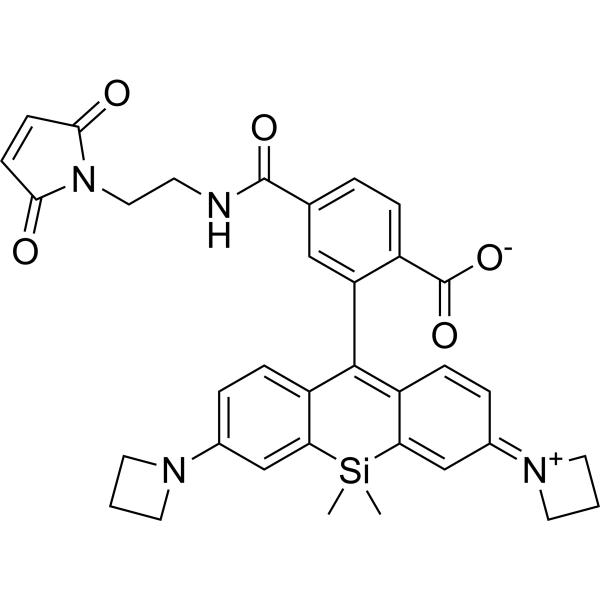

| Synonyms | 2-[3-(azetidin-1-ium-1-ylidene)-7-(azetidin-1-yl)-5,5-dimethylbenzo[b][1]benzosilin-10-yl]-4-[2-(2,5-dioxopyrrol-1-yl)ethylcarbamoyl]benzoate |
| Molecular Formula | C35H34N4O5Si |
| Purity | ≥95% |
| InChI | InChI=1S/C35H34N4O5Si/c1-45(2)29-20-23(37-14-3-15-37)6-9-26(29)33(27-10-7-24(21-30(27)45)38-16-4-17-38)28-19-22(5-8-25(28)35(43)44)34(42)36-13-18-39-31(40)11-12-32(39)41/h5-12,19-21H,3-4,13-18H2,1-2H3,(H-,36,42,43,44) |
| InChIKey | AZBDLOPMXNNQQB-UHFFFAOYSA-N |
| SMILES | C[Si]1(C2=CC(=[N+]3CCC3)C=CC2=C(C4=C1C=C(C=C4)N5CCC5)C6=C(C=CC(=C6)C(=O)NCCN7C(=O)C=CC7=O)C(=O)[O-])C |
| Reference | [1]. Grimm JB, et al. A general method to improve fluorophores for live-cell and single-molecule microscopy. Nat Methods. 2015;12(3):244-250. doi:10.1038/nmeth.3256 [2]. Basu S, et al. FRET-enhanced photostability allows improved single-molecule tracking of proteins and protein complexes in live mammalian cells. Nat Commun. 2018;9(1):2520. Published 2018 Jun 28. |
