JC-1

• CAT Number: I011641
• CAS Number: 3520-43-2
• Molecular Formula: C25H27Cl4IN4
• Molecular Weight: 652.23
• Purity: ≥95%

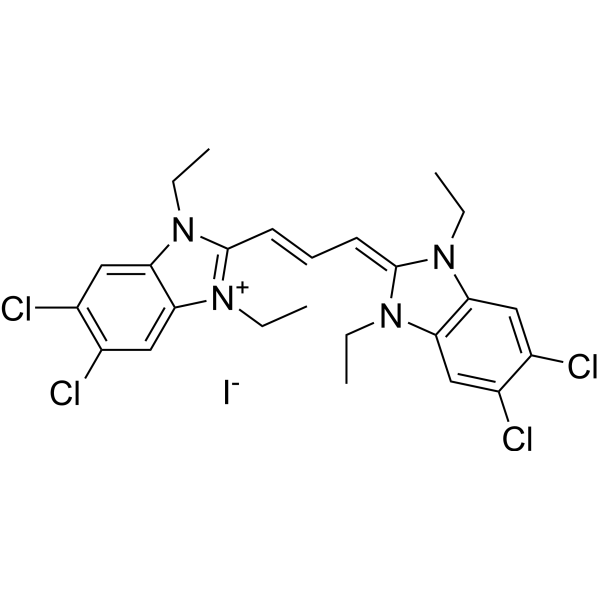

• Synonyms: 5,6-dichloro-2-[(E)-3-(5,6-dichloro-1,3-diethylbenzimidazol-3-ium-2-yl)prop-2-enylidene]-1,3-diethylbenzimidazole;iodide
• InChI: InChI=1S/C25H27Cl4N4.HI/c1-5-30-20-12-16(26)17(27)13-21(20)31(6-2)24(30)10-9-11-25-32(7-3)22-14-18(28)19(29)15-23(22)33(25)8-4;/h9-15H,5-8H2,1-4H3;1H/q+1;/p-1
• InChIKey: FYNNIUVBDKICAX-UHFFFAOYSA-M
• SMILES: CCN1C2=CC(=C(C=C2[N+](=C1C=CC=C3N(C4=CC(=C(C=C4N3CC)Cl)Cl)CC)CC)Cl)Cl.[I-]

JC-1 (CBIC2) is an ideal fluorescent probe widely used to detect mitochondrial membrane potential. JC-1 accumulates in mitochondria in a potential dependent manner and can be used to detect the membrane potential of cells, tissues or purified mitochondria. In normal mitochondria, JC-1 aggregates in the mitochondrial matrix to form a polymer, which emits strong red fluorescence (Ex=585nm, Em=590nm); When the mitochondrial membrane potential is low, JC-1 cannot aggregate in the matrix of mitochondria and produce green fluorescence (ex=514nm, em=529nm)[1].
JC-1 staining
a. Take the 6-well plate as an example for cell planking, and the density is 5×105/mL. Incubate overnight in 5% CO2 incubator at 37℃.
Note: it is suggested that the cell density during apoptosis induction should not exceed 1×106/ml, which can also be cultured to the appropriate density according to your own cell type.
b. Take 0.5 mL suspension into sterile centrifuge tube; 400 g centrifugation for 3-5 min; Discard the supernatant.
c. The cells were resuspended with 1mljc-1 working solution and incubated in 5% CO2 incubator at 37℃for 15-30 min.
d. Centrifugation at room temperature for 5 min at 400 g; Suck of the supernatant.
e. The cells were resuspended with 2 mL cell culture medium or buffer, and then centrifuged at room temperature for 5 min at 400 g; Discard the supernatant and repeat twice.
f. Resuspend the cells with 1mL of fresh culture medium or buffer, and immediately conduct subsequent flow cytometry or fluorescence microscope observation.
g. Data analysis (flow cytometry) : mitochondria of healthy cells containing red JC-1 aggregates were detected by FL2 channel; Apoptotic or unhealthy cells containing green JC-1 monomer were detected by FL1 (FITC) channel.
h. If used for enzyme labeling instrument, use 300 μL buffer resuspended cells; Then 100 per hole μ Transfer the stained cells to a light tight 96 well plate with the amount of L, and then conduct fluorescent enzyme label plate analysis.

Reference

[1]. A Perelman, et al. JC-1: alternative excitation wavelengths facilitate mitochondrial membrane potential cytometry. Cell Death Dis. 2012 Nov 22;3:e430.
 [Content Brief]

[2]. Vera C. Keil, et al. Ratiometric high-resolution imaging of JC-1 fluorescence reveals the subcellular heterogeneity of astrocytic mitochondria. Pflügers Archiv – European Journal of Physiology. 2011,462(5): 693-708.
 [Content Brief]

[3]. Jung-Ho LEE, et al. Real-time analysis of amyloid fibril formation of α-synuclein using a fibrillation-state-specific fluorescent probe of JC-1. Biochem. J. 2009, 418:311-323.

[4]. Salvioli S, et al. JC-1, but not DiOC6(3) or rhodamine 123, is a reliable fluorescent probe to assess delta psi changes in intact cells: implications for studies on mitochondrial functionality during apoptosis. FEBS Lett. 1997 Jul 7;411(1):77-82.
 [Content Brief]
