M-15 liquid crystals belong to the oxycyanobiphenyl family and demonstrate a liquid crystalline phase within the temperature range of 47-67.5°C. The phase transitions of M-15 have been investigated using proton nuclear magnetic resonance (H NMR) spectroscopy. This analysis provides valuable insights into the structural changes and dynamics occurring during the transition between different liquid crystal phases.
| Catalog Number | I031356 |
| CAS Number | 52364-71-3 |
| Synonyms | m 15; D 105; 5COB; 5OCB |
| Molecular Formula | C18H19NO |
| Purity | 98% |
| Solubility | Soluble in DMSO |
| Appearance | Solid powder |
| Storage | Room Temperature |
| IUPAC Name | (1,1'-Biphenyl)-4-carbonitrile, 4'-(pentyloxy)- |
| InChI | InChI=1S/C18H19NO/c1-2-3-4-13-20-18-11-9-17(10-12-18)16-7-5-15(14-19)6-8-16/h5-12H,2-4,13H2,1H3 |
| InChIKey | RDISTOCQRJJICR-UHFFFAOYSA-N |

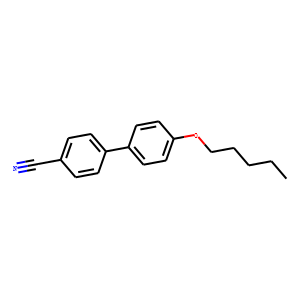

| SMILES | N#CC1=CC=C(C2=CC=C(OCCCCC)C=C2)C=C1 |
| Reference | X-Ray Studies on the Mesogen 4?-n-Pentyloxy-4-Biphenylcarbonitrile(5OCB) in the Solid Crystalline State Mandal P and Paul S Mol. Cryst. Liq. Cryst. 131(3-4), -, (1985) |
