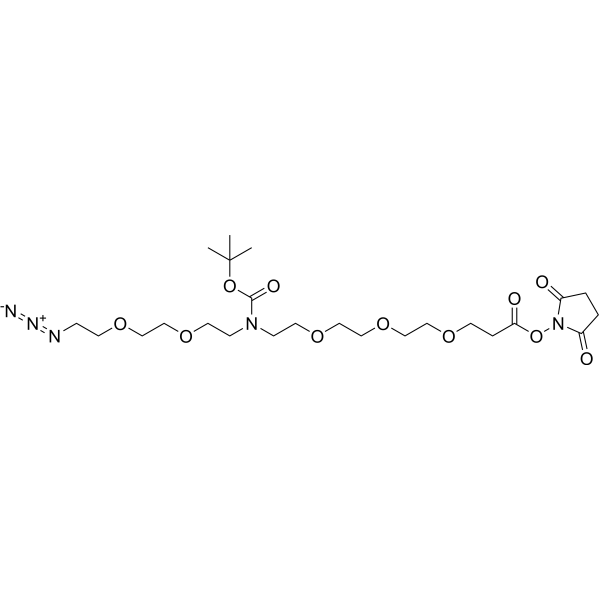

N-(Azido-PEG2)-N-Boc-PEG3-NHS ester

• CAT Number: I015905
• CAS Number: 2093153-85-4
• Molecular Formula: C24H41N5O11
• Molecular Weight: 575.61
• Purity: ≥95%
• Synonyms: (2,5-dioxopyrrolidin-1-yl) 3-[2-[2-[2-[2-[2-(2-azidoethoxy)ethoxy]ethyl-[(2-methylpropan-2-yl)oxycarbonyl]amino]ethoxy]ethoxy]ethoxy]propanoate
• InChI: InChI=1S/C24H41N5O11/c1-24(2,3)39-23(33)28(8-12-36-16-15-35-11-7-26-27-25)9-13-37-17-19-38-18-14-34-10-6-22(32)40-29-20(30)4-5-21(29)31/h4-19H2,1-3H3
• InChIKey: LICLIIAXFJFOMD-UHFFFAOYSA-N
• SMILES: CC(C)(C)OC(=O)N(CCOCCOCCN=[N+]=[N-])CCOCCOCCOCCC(=O)ON1C(=O)CCC1=O

N-(Azido-PEG2)-N-Boc-PEG3-NHS ester is a PEG-based PROTAC linker that can be used in the synthesis of PROTACs[1]. N-(Azido-PEG2)-N-Boc-PEG3-NHS ester is a click chemistry reagent, it contains an Azide group and can undergo copper-catalyzed azide-alkyne cycloaddition reaction (CuAAc) with molecules containing Alkyne groups. Strain-promoted alkyne-azide cycloaddition (SPAAC) can also occur with molecules containing DBCO or BCN groups.
PROTACs contain two different ligands connected by a linker; one is a ligand for an E3 ubiquitin ligase and the other is for the target protein. PROTACs exploit the intracellular ubiquitin-proteasome system to selectively degrade target proteins[1].

Reference

[1]. An S, et al. Small-molecule PROTACs: An emerging and promising approach for the development of targeted therapy drugs. EBioMedicine. 2018 Oct;36:553-562
