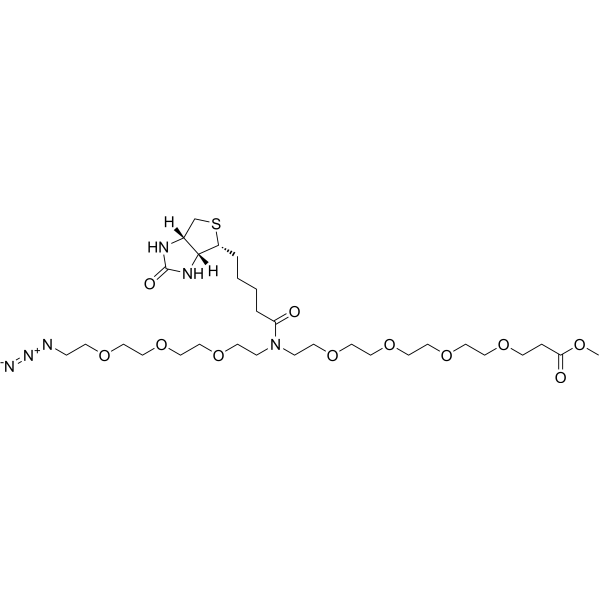

N-(Azido-PEG3)-N-Biotin-PEG4-methyl ester

For research use only. Not for therapeutic Use.

  • CAT Number: I014502
  • CAS Number: 2100306-76-9
  • Molecular Formula: C30H54N6O11S
  • Molecular Weight: 706.85
  • Purity: ≥95%
Inquiry Now

N-(Azido-PEG3)-N-Biotin-PEG4-methyl ester is a PEG-based PROTAC linker that can be used in the synthesis of PROTACs[1]. N-(Azido-PEG3)-N-Biotin-PEG4-methyl ester is a click chemistry reagent, it contains an Azide group and can undergo copper-catalyzed azide-alkyne cycloaddition reaction (CuAAc) with molecules containing Alkyne groups. Strain-promoted alkyne-azide cycloaddition (SPAAC) can also occur with molecules containing DBCO or BCN groups.
PROTACs contain two different ligands connected by a linker; one is a ligand for an E3 ubiquitin ligase and the other is for the target protein. PROTACs exploit the intracellular ubiquitin-proteasome system to selectively degrade target proteins[1].


Catalog Number I014502
CAS Number 2100306-76-9
Synonyms

methyl 3-[2-[2-[2-[2-[5-[(3aR,4R,6aS)-2-oxo-1,3,3a,4,6,6a-hexahydrothieno[3,4-d]imidazol-4-yl]pentanoyl-[2-[2-[2-(2-azidoethoxy)ethoxy]ethoxy]ethyl]amino]ethoxy]ethoxy]ethoxy]ethoxy]propanoate

Molecular Formula C30H54N6O11S
Purity ≥95%
InChI InChI=1S/C30H54N6O11S/c1-40-28(38)6-10-41-14-18-45-22-23-47-21-17-44-13-9-36(8-12-43-16-20-46-19-15-42-11-7-32-35-31)27(37)5-3-2-4-26-29-25(24-48-26)33-30(39)34-29/h25-26,29H,2-24H2,1H3,(H2,33,34,39)/t25-,26-,29-/m1/s1
InChIKey ZZZFELOBFYPAJE-WWPJHQMMSA-N
SMILES COC(=O)CCOCCOCCOCCOCCN(CCOCCOCCOCCN=[N+]=[N-])C(=O)CCCCC1C2C(CS1)NC(=O)N2
Reference

[1]. An S, et al. Small-molecule PROTACs: An emerging and promising approach for the development of targeted therapy drugs. EBioMedicine. 2018 Oct;36:553-562
